M-TBM (MINI - TUNNEL BORING MACHINE)

Industrial Applications.

  • Thermal Power Plants.
  • Integrated Steel Plants.
  • Oil Refineries.
  • Cement Industries.
  • Chemical Manufacturing facilities.
  • Municipal storm water drains.

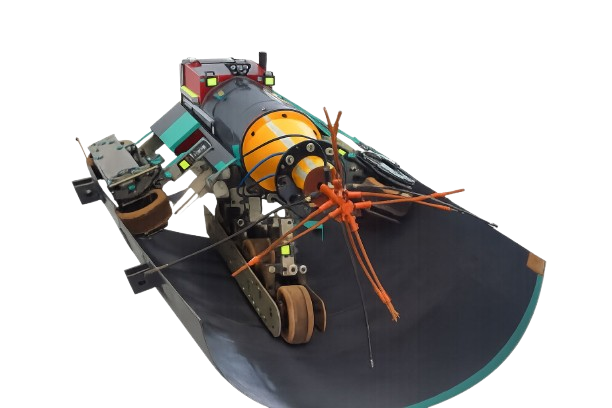

M-TBM Assembly

M-TBM platform designed for performing in-situ descaling and Deposit Extraction from pipelines, especially Non Live CO Gas pipelines in constrained industrial environments found in Integrated Steel Plants. Given the scale of Pipeline maintenance within integrated steel plants, we have developed this platform for future pipe restoration, maintenance of bypass lines and Repurposing the pipeline to extend its life cycle.

The technology has evolved from an initial AC-cabled system to a more stable, second-generation wireless DC model Designed to operate inside pipelines installed at heights.

Proven Field Validation: Completed a 3-day mechanical trial at Tata Steel, Kalinganagar, accomplishing 3 objectives:

To demonstrate

  • The effectiveness of the cutting assembly.
  • The ability of M-TBM to traverse inside the pipe.
  • The ability of M-TBM to drain the debris outside the pipe.
YOUTUBE LINK

Fully Wireless

Battery Operated

Long Range Remote Control

WATCH ON YOUTUBE

PROJECT TIMELINE

1. Jun 2024

  • 1st Site Survey
  • Problem Assessment

2. July 2024

  • LOI Granted [Letter of Intent]

3. Aug 2024

  • Work Order Issued

4. Sept. 2024

  • Ideation of Solution
  • Process Planning
  • Resource Mobilization
  • Design Phase

8. Jan 2025

  • Prototype – 1 ready for 1st mechanical trial

7. December 2024

  • Testing Pipeline Inspection at TSK

6. November 2024

  • Fabrication
  • Assembly

5. Oct 2024

  • Fabrication
  • Assembly

9. Feb – 2025

  • 1st Prototype performed mechanical trial
  • Meeting b/w us and TSK Utilities Chief
  • 9 points of developments discussed

10. May – 2025

  • Development of 2nd Prototype begins

11. Dec – 2025

  • 2nd Prototype completion
  • Internal Testing completed

12. Jan – 2026

  • 2nd Prototype Ready For mechanical testing

13. Jan–Feb 2026

  • Establishment of GRASS ENGG. private limited

The platform presents significant untapped potential across industrial maintenance operations, including:

  • Cleaning of rotary kilns
  • Agitator tank maintenance
  • Chimney and stack cleaning
  • Vertical hopper cleaning and inspection

Planned capability expansions include:

  • Internal surface painting
  • Epoxy coating applications
  • Wall thickness measurement and inspection
  • Adaptation for rotary kiln environments
